DLP Design USB Product Page

	FAQ on the topic of "Board appears dead" FAQ on the topic of VID / PID

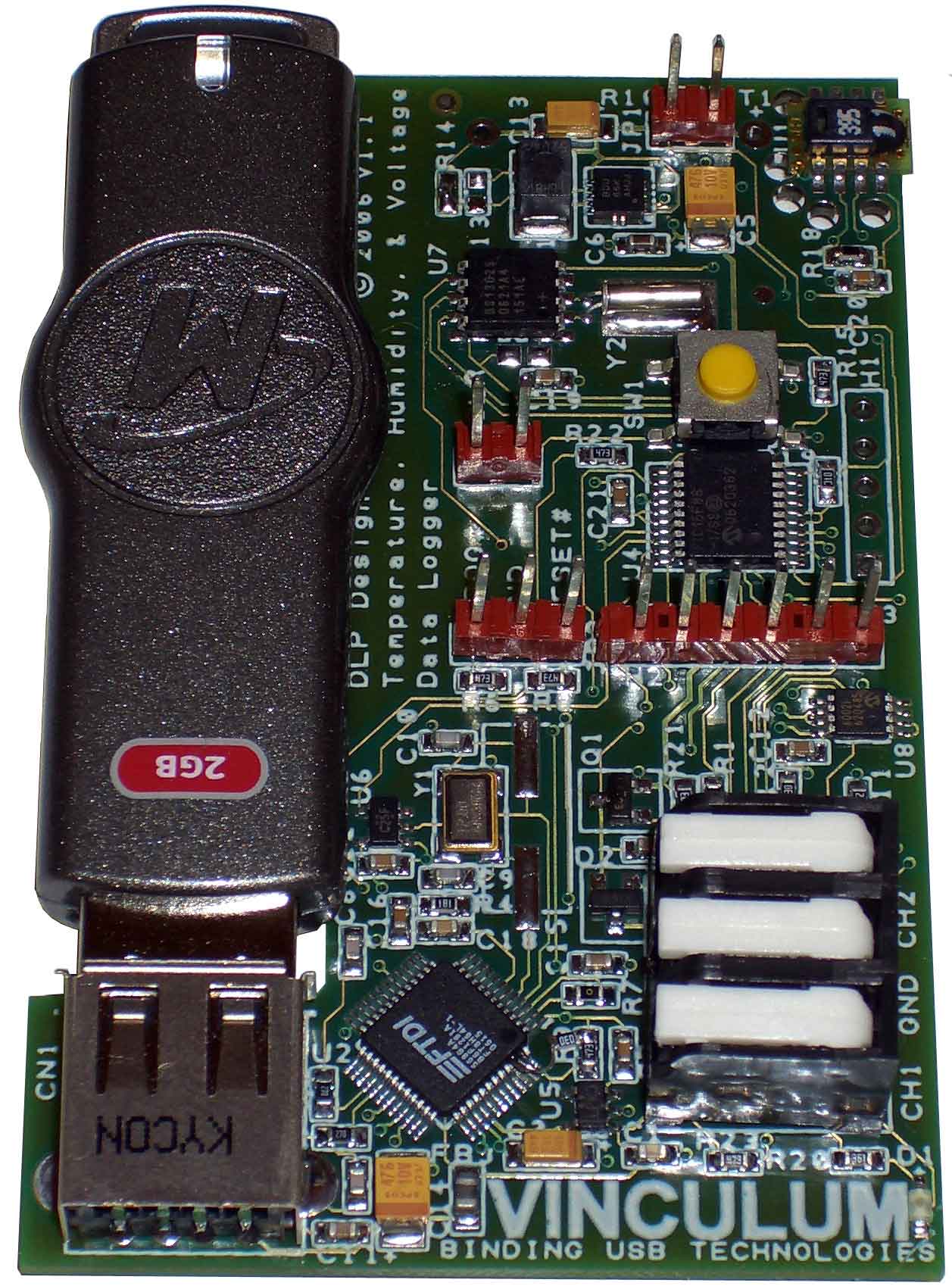

	DLP-VLOG - Development Kit** - Intended as both a demonstration platform for the new Vinculum IC as well as a learning tool, this Development Kit is designed to log temperature, humidity and voltage data to a USB Flash drive. Using the Vinculum IC from FTDI, this system demonstrates how one can provide virtually unlimited data storage for a small microcontroller.


	DLP-D - Security Dongle** - USB-based Security Dongle with permanent, hard-coded serial number and User Area memory.

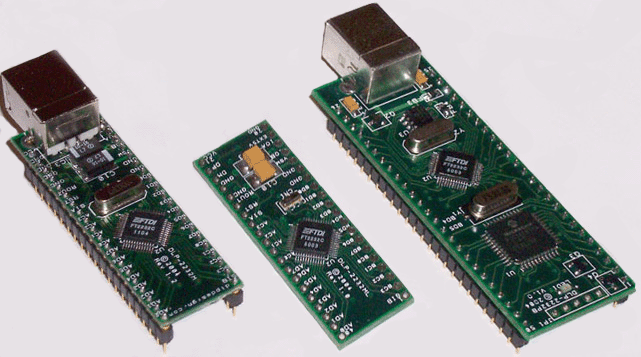

	DLP-2232M-G - Dual-Channel USB Module - The DLP-2232M-G uses FTDI's FT2232D 3rd-generation Dual Channel USB-FIFO/UART and offers a simple solution for interfacing ASIC/MCU/FPGA/DSP based designs to a host computer via USB. Each channel can be configured for either USB-UART or USB-FIFO via the on-board setup EEPROM. DLP-2232ML - Low-Profile, Dual-Channel USB Module - The DLP-2232ML is perfect for space constrained designs. DLP-2232PB-G - USB/Microcontroller Adapter Board - The DLP-2232PB-G uses FTDI's 3RD generation FT2232D USB IC and a PIC Microchip 16F877A to form a rapid prototyping development tool. On-board firmware uploader included - no device programmer required! * * * * * New Low Price - $50.00 * * * * * * * * New Software Bundle: DLP-2232PB-G with CCS C Compiler - Only $110.00! * * * DLP-2232DAQ - All Serial Data-Acquisition Board - As seen in Nuts & Volts magazine - The DLP-2232DAQ works with either the DLP-2232M or DLP-2232ML to form a low-cost data-acquisition system.


	DLP-USB245M-G - USB FIFO Adapter Board - The DLP-USB245M uses FTDI's FT245BL 2ND generation USB FIFO and offers a simple, lead-free solution for interfacing ASIC/MCU/FPGA/DSP based designs to a host computer via USB. Features include an easy to use FIFO-like interface and a data transfer rate of up to 8 million bits per second. DLP-USB232M-G - USB UART Adapter Board - The DLP-USB232M uses FTDI's 2ND generation FT232BL (lead-free) USB UART and is the ideal solution for upgrading legacy RS232 designs to USB. DLP-TXRX-G - USB UART Interface Board - The DLP-TXRX-G lead-free module is designed to easily connect a microcontroller/DSP/FPGA/etc to a host PC; or upgrade a legacy RS232C device to USB with minimal design effort. * * * * * New Low Price - $20.00 * * * * ***


	Based on DLP Design's USB FIFO interface, these microcontroller development platforms offer "full speed" USB data transfer capability and provide the developer with the fastest path to developing a USB based product. DLP-245PL-G - USB to PIC18F8722 24MHz Microcontroller * * * * * New Low Price - $65.00 * * * * * * * * New Software Bundle: DLP-245PL-G with CCS C Compiler - Only $125.00! * * * DLP-232PC - USB to PIC18F Microcontroller -- Our smallest and lowest priced microcontroller module - only $29.95 DLP-PROP - USB to Parallax Propeller 96MHz Microcontroller DLP-245PB-G - USB to PIC16F877A 20MHz Microcontroller *** * * * * New Low Price - $40.00 * * * * * * * * New Software Bundle: DLP-245PB-G with CCS C Compiler - Only $100.00! * * * DLP-245SY - USB to Parallax SX48 50MHz Microcontroller *** * * * * New Low Price - $44.95 * * * * * * * * New Software Bundle: DLP-245SY-G with Grich C Compiler - Only $109.95! * * * DLP-2232PB-G - - USB to PIC16F877A 20MHz Microcontroller - The DLP-2232PB-G uses FTDI's 3RD generation FT2232D USB IC and a PIC Microchip 16F877A to form a rapid prototyping development tool. On-board firmware uploader included - no device programmer required! *** * * * * New Low Price - $50.00 * * * * * * * * New Software Bundle: DLP-2232PB-G with CCS C Compiler - Only $110.00! * * ***


	Acquire data from the world around you using these USB based data acquisition boards. Learn how to interface to FTDI's FT232BM USB-UART IC using small microcontrollers and simple RS232-like commands. DLP-IO8-G - 8-Channel Data Acquisition Module DLP-TEMP-G - 3-Channel USB-UART & PIC Microchip Based Data Acquisition Board *** * * * * New Low Price - $25.00 * * * * * DLP-TEMP9 - 9-Channel USB-UART & PIC Microchip Based Data Acquisition Board**

DLP-TILT** - Tilt Sensor Module - Tilt Sensor / Accelerometer / Mouse Alternative / AC Analysis Module

USB to RS232 and USB to Serial (TTL Level) Cables, Modules and Adapters:

EVAL232R (datasheet)	Check Inventory Level
MM232R (datasheet)	Check Inventory Level
UC232R (datasheet)	Check Inventory Level
UM232R (datasheet)	Check Inventory Level
UM245R (datasheet)	Check Inventory Level
TTL-232R (0.1-inch spacing)(3.3V & 5V) (datasheet)	Check Inventory Level
TTL-232R (2mm spacing)(3.3V & 5V) (datasheet)	Check Inventory Level
TTL232R-WE (datasheet)	Check Inventory Level

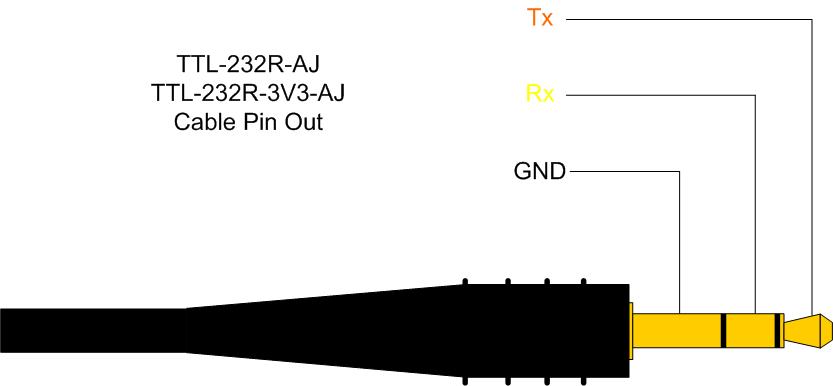

TTL232R-AJ (datasheet) (view pinout)	Check Inventory Level
TTL232R-PCB (datasheet)	Check Inventory Level
UC232R-10 (more info.)	Check Inventory Level
US232R-10 (more info.)	Check Inventory Level
US232R-100 (more info.)	Check Inventory Level
UB232R (schematic)	Check Inventory Level

(Place mouse pointer over the word "VIEW" to see an image of the item)


	DLP-TH1 - Temperature Humidity Sensor The DLP-TH1 is a low cost, lead free, USB-based digital temperature and humidity sensor. Now you can easily monitor temperature, humidity and dew point via your PC’s USB port without needing any other power source. Windows software provided free lets you chart results to the PC screen and log data to your hard drive, and features email notification when temperature and humidity readings exceed alarm levels.

DLP-FLASH - Microcontroller FLASH Programmer

The DLP-FLASH device programmer is compatible with the microcontrollers listed below. Use this high-speed, USB based programmer to download your HEX firmware to a PIC Microchip or Ubicom/Parallax Microcontroller.

Compatible with the following processors:

PIC Microchip				Ubicom/Parallax
16F84A	16F870	16F871	16F872	SX28	SX48
16F873	16F874	16F876	16F877

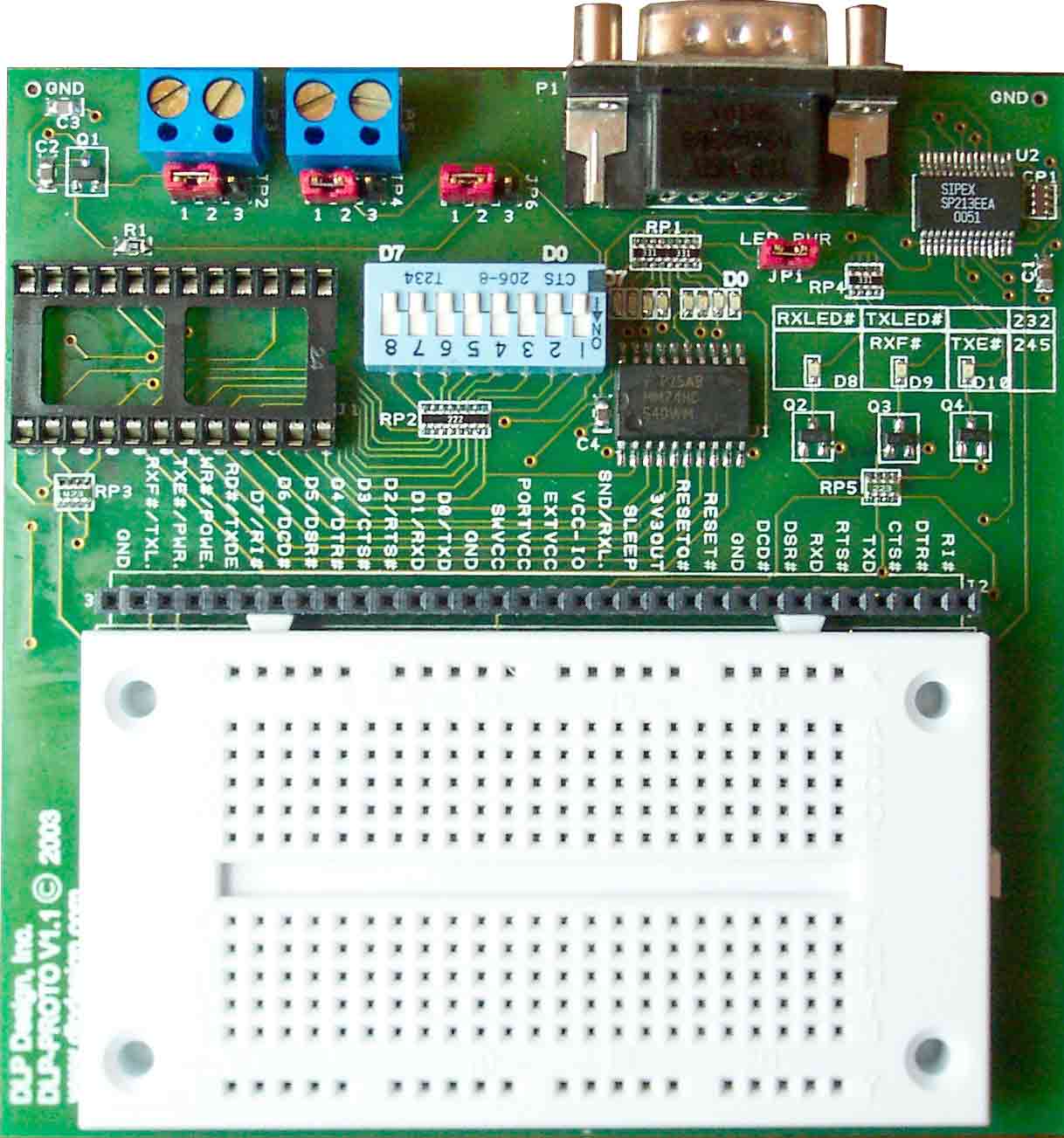

	DLP-PROTO - Prototyping Board The DLP-PROTO makes easy work of experimenting with the DLP-USB245M and DLP-USB232M USB adapter modules. It is perfectly suited for prototyping a USB to RS-232 converter design or becoming familiar with the FT2xxBM’s newest feature known as the Bit-Bang Mode. Or, you can add your own microcontroller to the prototyping area to get a jumpstart on developing your new product.


	US232B/LC - USB to RS232 Converter Module (4-inch USB Cable) This is a ready-made cable which will update your legacy serial device to USB INSTANTLY! It comes with Win 98/2K/XP/ME royalty-free drivers on CDROM. US232B - USB to RS232 Converter Module (1 Meter USB Cable) This is the same ready-made cable with Win 98/2K/XP/ME royalty-free drivers on CDROM, but with a longer USB cable.

** Due to a generous quantity discount pricing structure, these
modules can also be designed directly into your end product.
OEM pricing available. Call or email for details.
