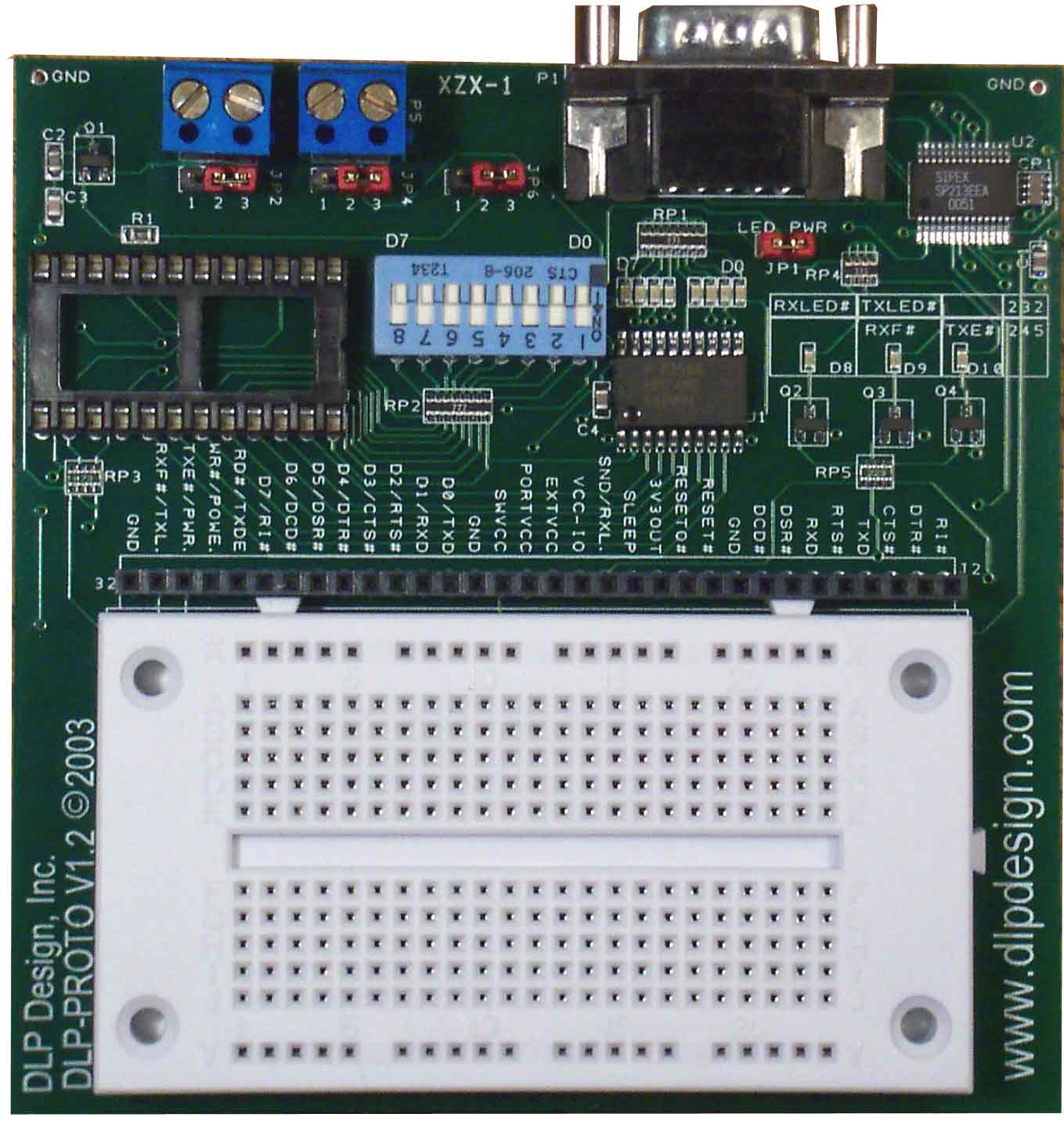

DLP-PROTO Prototyping Board








  • Works with both the DLP-USB232M and DLP-USB245M modules
  • Great for prototyping new designs
  • Example source code provided for enabling Bit-bang mode in Visual C++ and Visual Basic
  • Makes easy work of prototying and testing USB-to-RS232 designs
  • LED indicators for data lines and selected status lines
  • Call or email DLP Design for volume pricing
DOWNLOADS
Test Application V1.0
DLL Drivers
DLL Driver Programmer's Guide
VCP Drivers
Example Visual C++ source code for enabling Bit-bang mode - Available upon purchase
Example Visual Basic source code for enabling Bit-bang mode - Available upon purchase
FTDI Driver Installation Ap Note for Win98
FTDI Driver Installation Ap Note for Win 2000

Add a 140 piece wire kit for $10.00

(see below)
  (You may need Adobe Acrobat to read this datasheet)
DLP-Proto Prototyping Board $90.00*

Test Application V2.0 $20.00 (More Info)

DLP-Flash Programmer $85.00 * ( More Info)

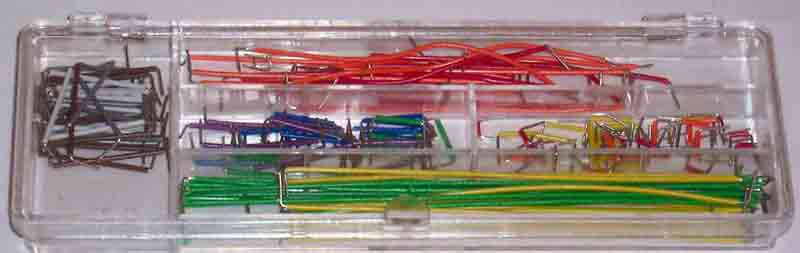

140 Piece Wire Kit $10.00*

6' USB Type A-B Cable $8.00*





For international sales check our retailer list
